Create a heart rate chart

Creates a visualization of heart rate measurements over time from wearable data. The chart displays heart rate values with optional daily average lines.

Usage

heart_rate_chart(
  .data,
  start = "start_time",
  end = "end_time",
  variable = "variable",
  value = "value",
  tz_offset = "tz_offset",
  add_average = TRUE
)

Arguments

.data

A data frame containing the wearable data.

start

The name of the column containing start timestamps. Defaults to "start_time".

end

The name of the column containing end timestamps. Defaults to "end_time".

variable

The name of the column containing variable names. Defaults to "variable".

value

The name of the column containing measurement values. Defaults to "value".

tz_offset

The name of the column containing timezone offsets. Defaults to "tz_offset".

add_average

Logical. If TRUE (default), adds a dashed horizontal line showing the daily average heart rate.

Value

A ggplot2::ggplot object displaying heart rate measurements faceted by date.

See also

hrv_chart() for heart rate variability

Examples

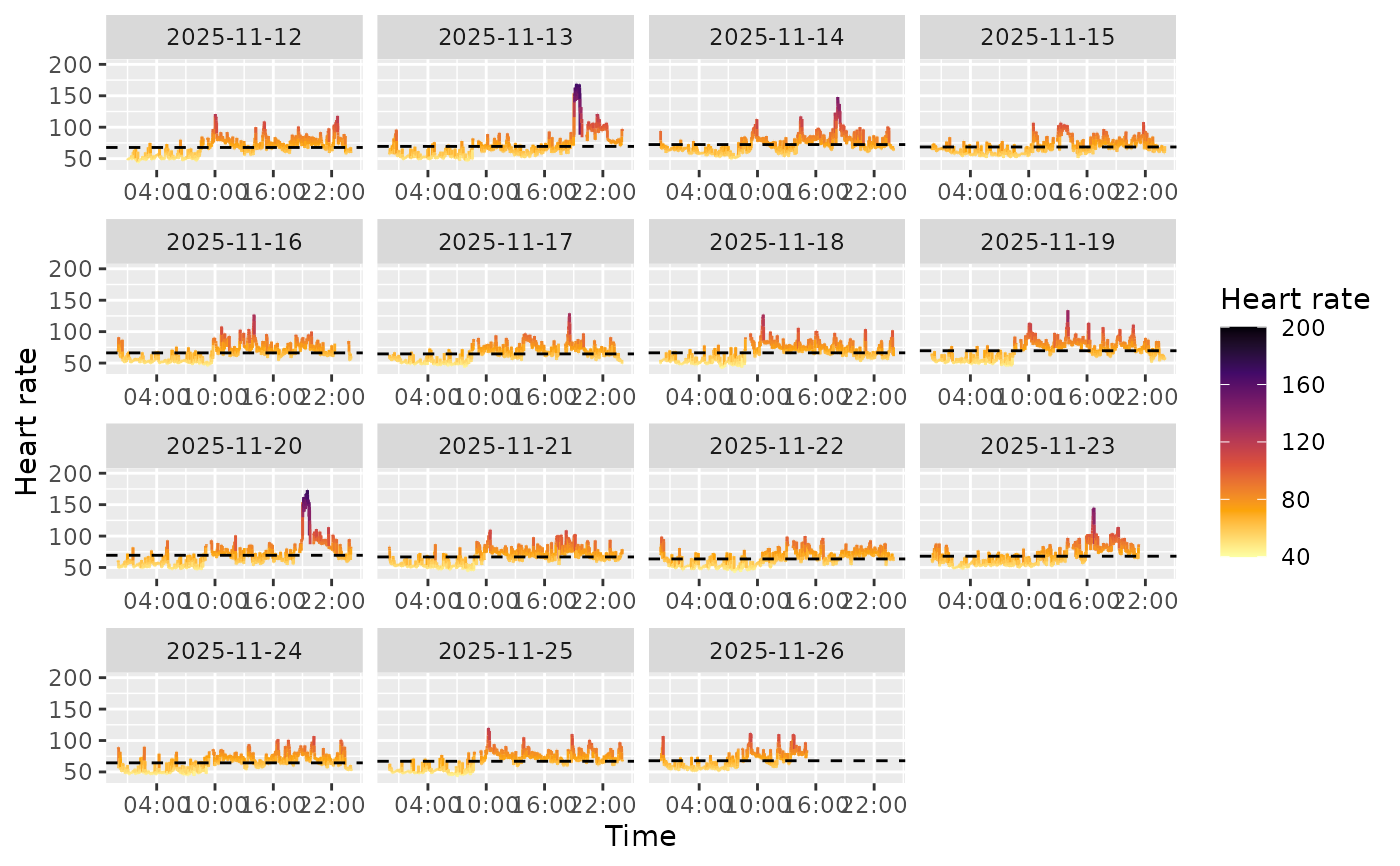

heart_rate_chart(dynamic_data)
#> Warning: Removed 1 row containing missing values or values outside the scale range
#> (`geom_segment()`).
