Create a sleep stages chart

Source: R/sleep_chart.R
sleep_chart.Rd

Creates a visualization of sleep stages (Awake, REM, Light, Deep) over time from wearable data. The chart shows sleep stage transitions throughout each night.

Usage

sleep_chart(
  .data,
  start = "start_time",
  end = "end_time",
  variable = "variable",
  tz_offset = "tz_offset",
  add_bed_time = TRUE
)

Arguments

.data

A data frame containing the wearable data, typically from clean_dynamic_data().

start

The name of the column containing start timestamps. Defaults to "start_time".

end

The name of the column containing end timestamps. Defaults to "end_time".

variable

The name of the column containing variable names. Defaults to "variable".

tz_offset

The name of the column containing timezone offsets. Defaults to "tz_offset".

add_bed_time

Logical. If TRUE (default), adds dotted vertical lines and labels showing bedtime and wake time.

Value

A ggplot2::ggplot object displaying sleep stages faceted by night.

See also

sleep_duration(), sleep_efficiency(), sleep_score() for sleep metrics

Examples

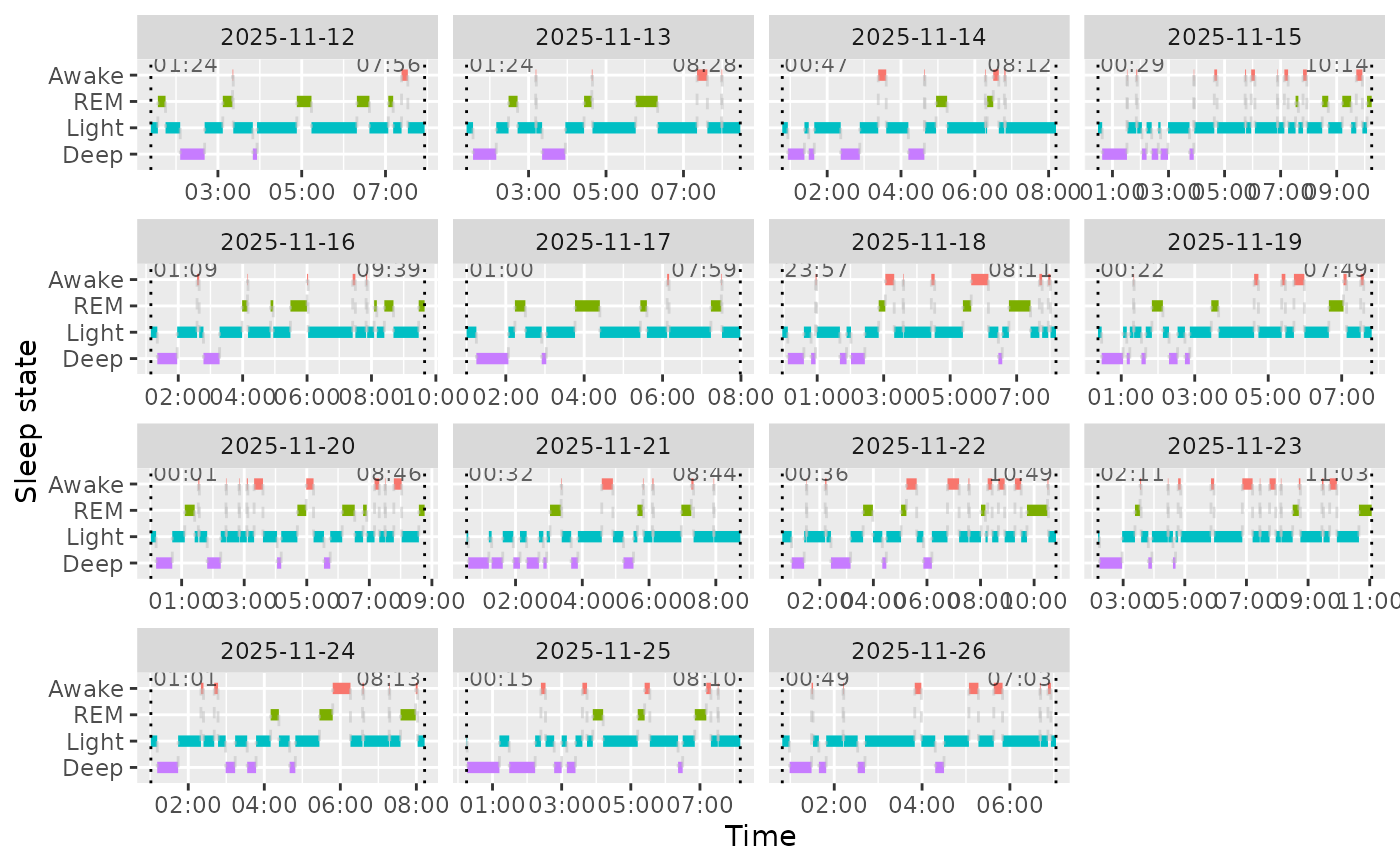

# Show the sleep chart of a single participant
sleep_chart(dynamic_data)


# Optionally, show the sleep chart without bed and wakeup times
sleep_chart(dynamic_data, add_bed_time = FALSE)
